Description

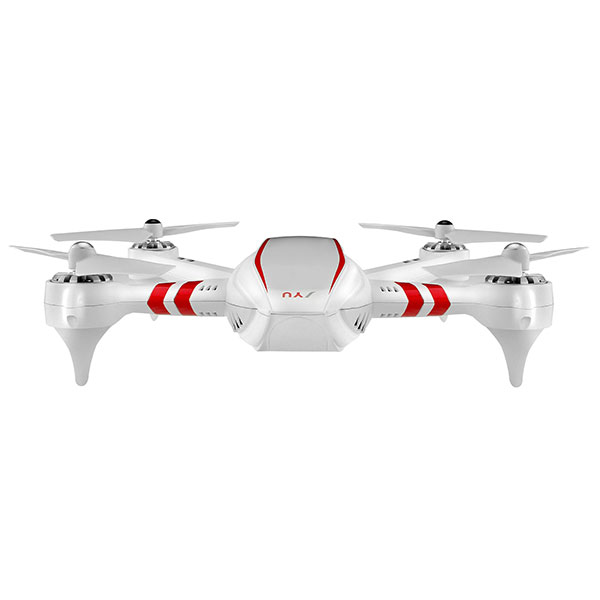

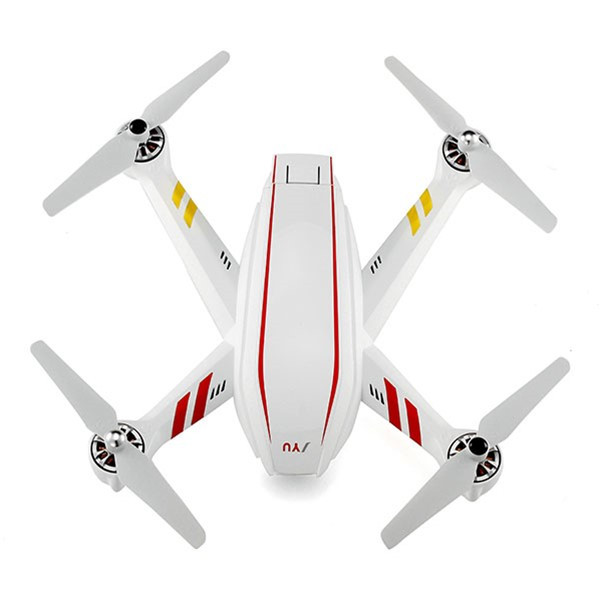

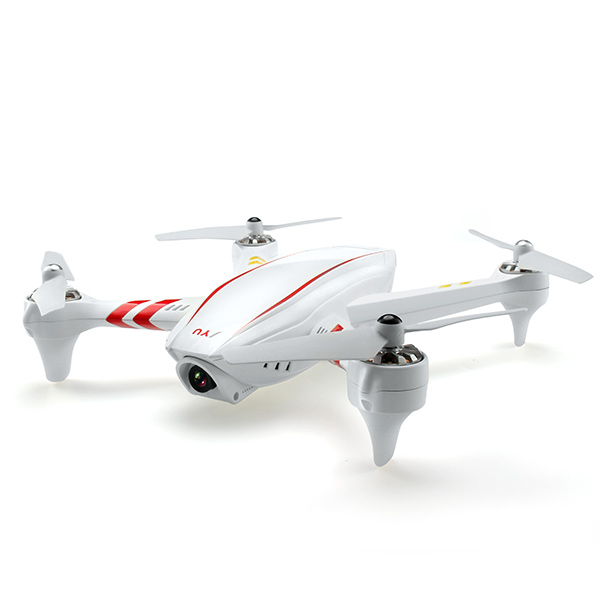

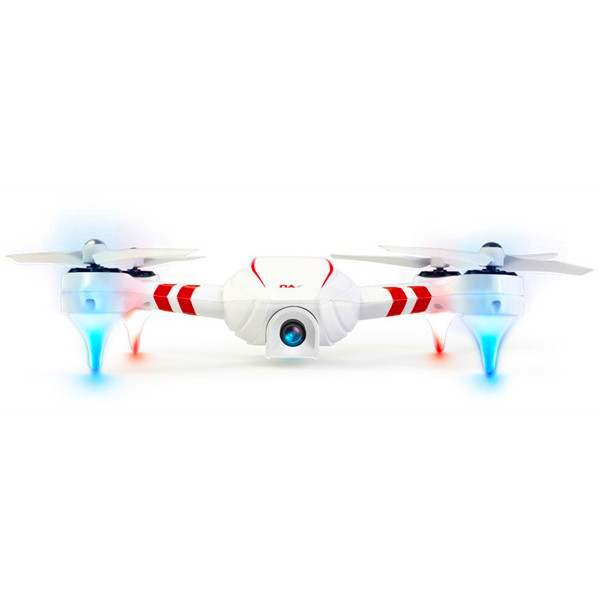

JYU Hornet S HornetS Racing 5.8G FPV With Goggles GPS & Gimbal Version FPV With 4K HD Camera GPS RC Quadcopter
Battery life:20 minutes
Basic Version
FPV Version

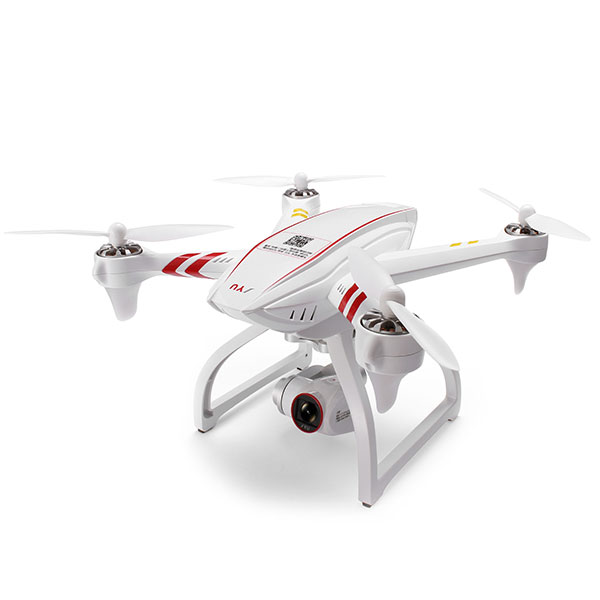

Gimbal Version
FPV Goggles Version
Description:
| Hornet S | |||
| Category | Module | Specs | Specs Value |
| Hornet S | (Battery Charger) | Voltage | 12.6V |
| Rated Power | 20W | ||
| WiFi Relay | Operation Frequency | 2.4G | |
| Communication Distance | 1000m | ||
| EIRP | FCC: 27 dBm; CE: 20 dBm | ||

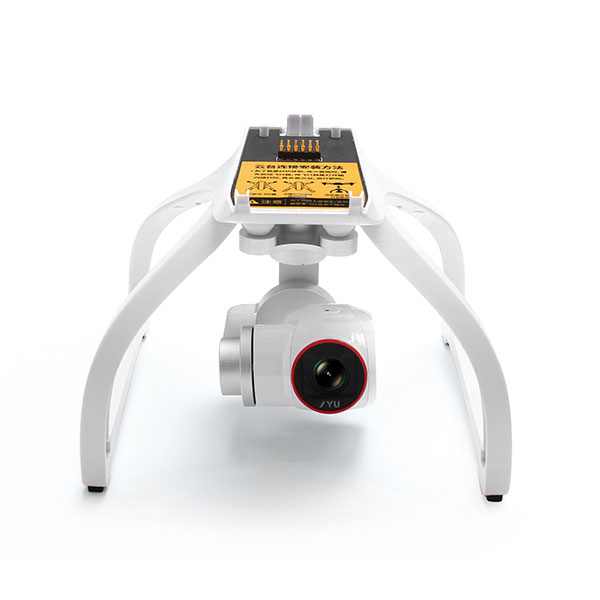

| Gimbal | Controllable Range | +20 — -90 degrees | |
| Angle Range | 0.05 | ||
| Operating Current | Static state: 100mA | ||
| Input Voltage | 8V | ||
| Accuracy | +/- 0.05 degrees | ||
| Lens | Aspheric HD Optic Glass Lens /F2.8 | ||
| FOV | 100° | ||
| ISO Range | 50-3200 | ||
| Camera Resolution | 16 million pixels (4640×3480) | ||
| Video Resolution |
4K@25FPS 2.7K@30FPS 1080P@60FPS 720P@120FPS |
||
| Operating Temperature | -10–50℃ | ||
| Picture Format | JPEG | ||
| Video Format | MOV/MP4 | ||
| Storage | TF(Micro_SD) Card 8G, 64G (MAX) | ||
| Weight | 158g(included camera) | ||
| Intelligent Flight Battery | Capacity | 2500mAh | |
| Voltage | 11.1V | ||
| Battery Type | LiPo Battery | ||
| Energy | 27.75Wh | ||
| Net Weight | 190g | ||
| Operating Temperature | 0-40℃ | ||
| Max Charging Power | 50W | ||
| Battery Life | 20mins | ||
| Discharging Temperature | 0-40℃ | ||
| Quadcopter | Weight (Including Battery And Propellers) | 550g | |
| Take Off Weight | 1kg | ||
| Max Ascent Speed | 10m/s | ||
| Max Descent Speed | 5m/s | ||
| Max Speed | 120km/s | ||
| Max Altitude Above Sea Level | 4km | ||
| Max Flight Time | 20-25 minutes | ||
| Operating Temperature | 0-40℃ | ||
| GPS Mode | GPS/GLONASS Dual Mode | ||
| Max Rotating Angular Velocity | 180 deg | ||
| Hover Accuracy(Safety Fly Mode) | 1m | ||
| Wheelbase | 280mm | ||
| Diagonal Size (Including Propellers) | 295mm | ||
| Propeller Type | 6030 | ||
| Motor Specs | 2204 | ||
| Live View | Mobile App | ||
| EIRP | 100 mW | ||
| Power Spectral Density | 6.9mW/MHz | ||
| Operating Frenquency | 2.4GHz ISM | ||
| Live View Quality | 480P @ 25fps | ||
| Latency | < 200ms | ||
| Required Operating Systems | iOS 8.0 or later Android 4.1.2 or later |
||
| Recommended Devices | •iOS •Android |
||
| Camera(Suitable for Club Carema)) | Sensor | SONY IMX078 | |
| Lens | HD optical glass aspheric lens/F2.8 /150°wide angle | ||
| ISO Range | video:1600/400 Photo:400/200/100 | ||
| Shutter Speed | Auto | ||
| Image Max Size | 12.4M(4072 × 3044) | ||
| Still Photography Modes | Auto | ||
| Video Recording Modes | 1920*1080P 24/25/30FPS 1280*720P 50/60FPS 640*480P 25/30FPS |
||
| Supported File Formats | JPEG h.264 codec/MP4 | ||
| Supported SD Card Types | TF(Micro_SD): 8G – 32G | ||
| Operating Temperature | 0-50℃ | ||
| FPV Specs | Resolution | 700 TVL | |
| Angle | 120 degree | ||
| Live View Pattern | Simulation Live View | ||
| Live View Frequency | 5.8G | ||
| Display | 4.3′ LCD | ||
| FPV Glass(Opitonal) | 16/9 72 Virtual Display,480*240(Resolution) | ||
Size of quad(LxWxH):232x232x63mm
Size of transmitter(LxWxH):155x131x127mm
Size of gimbal(LxWxH):150x138x93mm
Battery Life: 22 mins(for the basic version, because the gimbal is about 158g, the fly time is about 7~8mins.)
Software:Hornet S Configuration Software
Features:
* 120km/h high speed overflew the FERRARI racing supercar.
* Dual GPS auto positioning system, the accurate positioning location, perfect advanced follower.
* Intelligent battery could extend fly time for about 20 minutes, removable battery are easy for change.

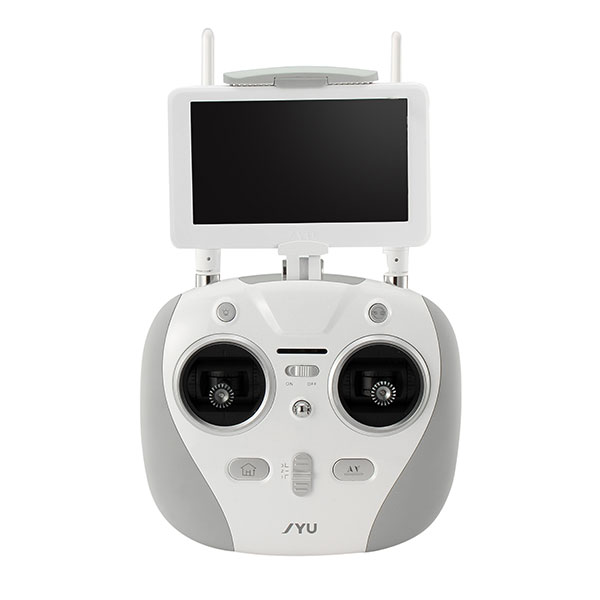

* Two antennas on the top of the transmitter to ensure a stable radio coverage.

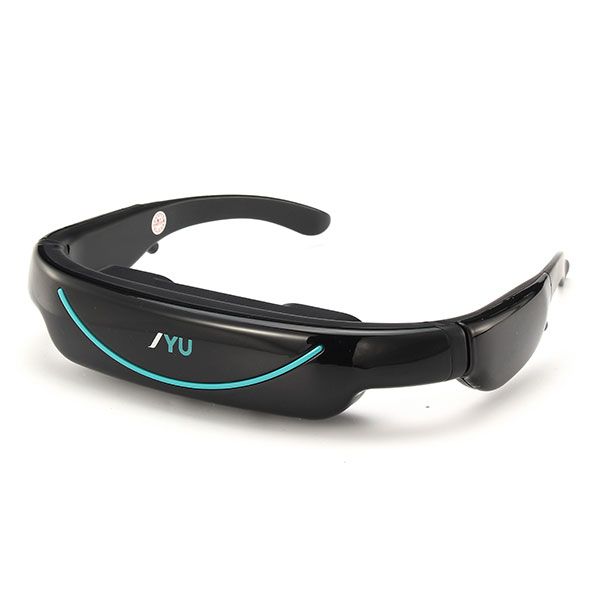

* FPV Goggles in a wide angle to give you a visual impact.

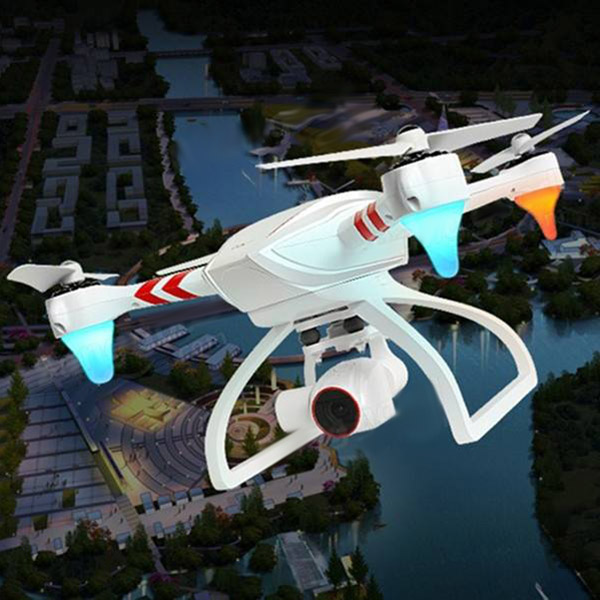

* 3-Axis Gimbal make shooting and taking video more stable.
* Two antennas on the top of the transmitter to ensure a stable radio coverage.
* FPV Goggles in a wide angle to give you a visual impact.
* 3-Axis Gimbal make shooting and taking video more stable.
*Colorful led light to distinguish the direction of quadcopter and Flight mode,show the battery’s reminding.Specially:
*Basic version: The camera module and gimbal module can be added.The transmitter with bulit-in 5.8G receiver can connect to monitor,
and connect to your phone through a profession APP.(The APP will release in September)*FPV version: Can support your own monitor.Do not have SD card and can not record video.*Gimbal version: Gimbal module in the gimbal version can be removed away,and camera module can be added to create a racing FPV quadcopter.
Gimbal version comes with 5.8G Transmitter,can FPV,you just need to add a monitor or connect to your phone.
and connect to your phone through a profession APP.(The APP will release in September)*FPV version: Can support your own monitor.Do not have SD card and can not record video.*Gimbal version: Gimbal module in the gimbal version can be removed away,and camera module can be added to create a racing FPV quadcopter.
Gimbal version comes with 5.8G Transmitter,can FPV,you just need to add a monitor or connect to your phone.
Package included:
Basic Version:
1 x Hornet S GPS Quadcopter
1 x Transmitter
1 x Battery

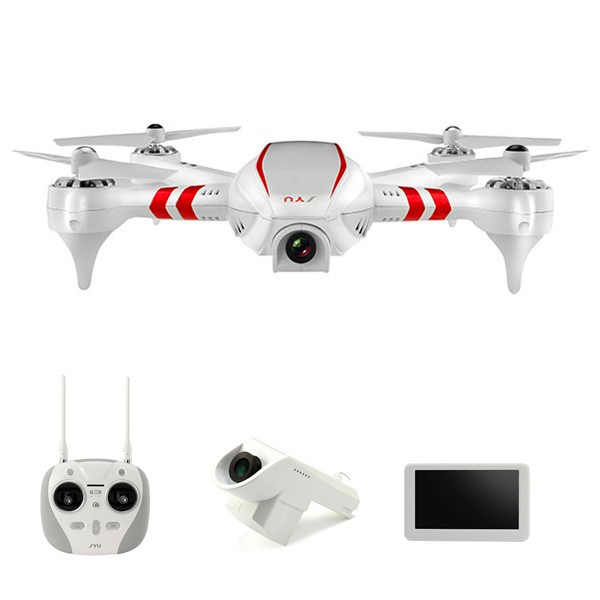

FPV Version:
1 x Hornet S GPS Quadcopter
1 x FPV 700 TVL Camera
1 x 4.3″ FPV LCD Screen
1 x Transmitter
1 x BatteryCamera Gimbal Version:
1 x Hornet S GPS Quadcopter
1 x 4K Camera
1 x Brushless Gimbal
1 x 4.3″ FPV LCD Screen
1 x Landing Gear
1 x Transmitter

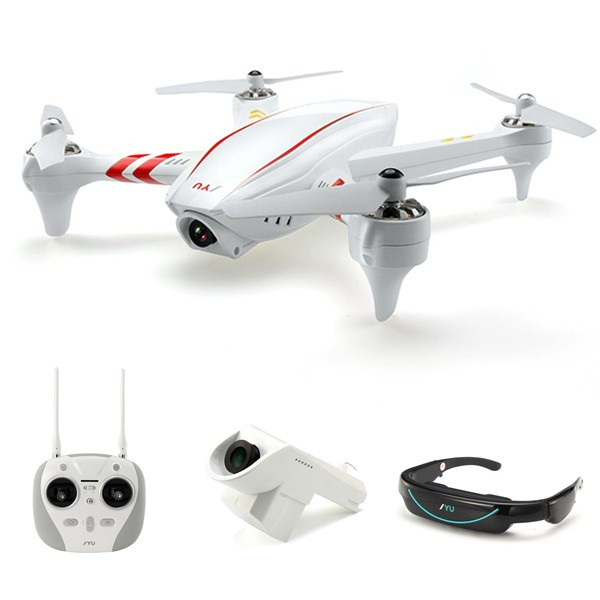

1 x BatteryGoggles Version:
1 x Hornet S GPS Quadcopter
1 x FPV 700 TVL Camera
1 x BatteryCamera Gimbal Version:
1 x Hornet S GPS Quadcopter
1 x 4K Camera
1 x Brushless Gimbal
1 x 4.3″ FPV LCD Screen
1 x Landing Gear
1 x Transmitter
1 x BatteryGoggles Version:
1 x Hornet S GPS Quadcopter
1 x FPV 700 TVL Camera
1 x FPV Goggles
1 x Transmitter
1 x Battery
